LUBRICATING SWITCH BLOCKS БПС (BPS)
Purpose
Lubrication switching blocks БПС (BPS) are designed to give the command to switch the flow to one of the lubrication lines of a double-line lubrication system of the end type when the specified pressure in the other lubrication line is reached.
The blocks operate on a lubrication plastic material with a penetration of at least 280 at lubricant temperature of +10 to +40 ° C.
Blocks are manufactured in two versions:
- БПС (BPS) 21 - at a pressure of 4 ... 10;
- БПС (BPS) 22 - at a pressure of 10 ... 20 MPa.

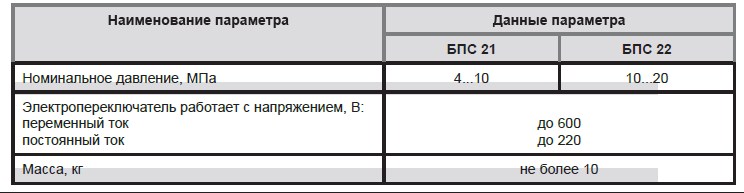

Technical parameters

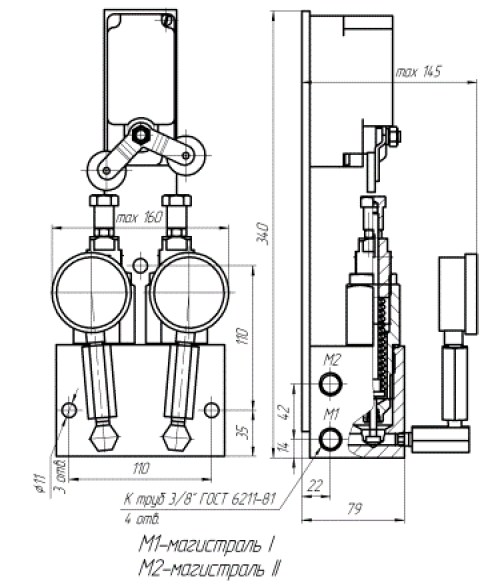

Dimensions and connection dimensions
